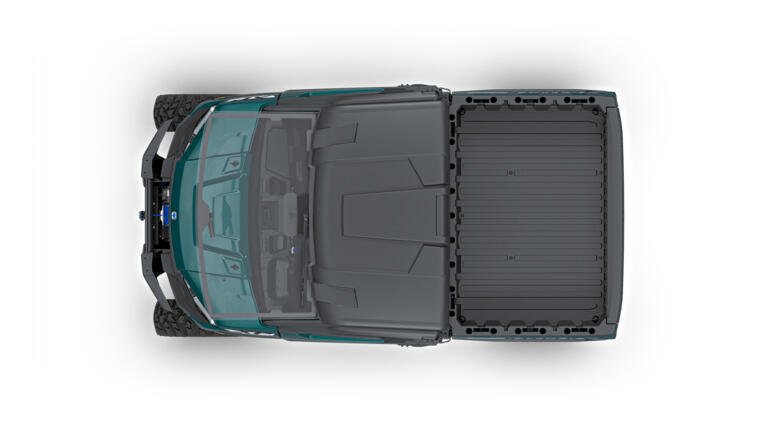

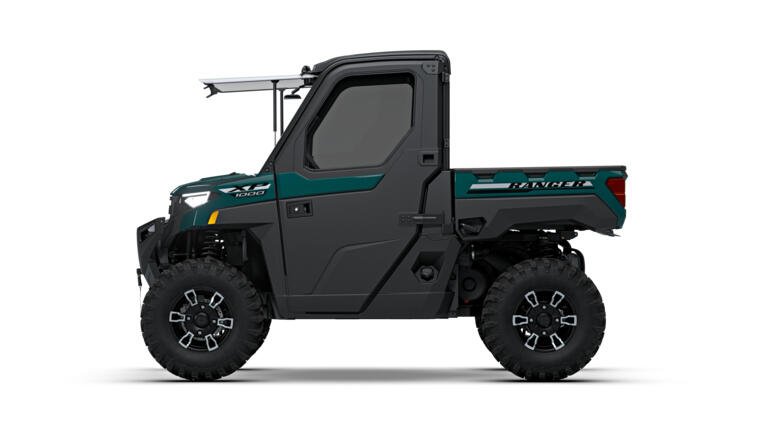

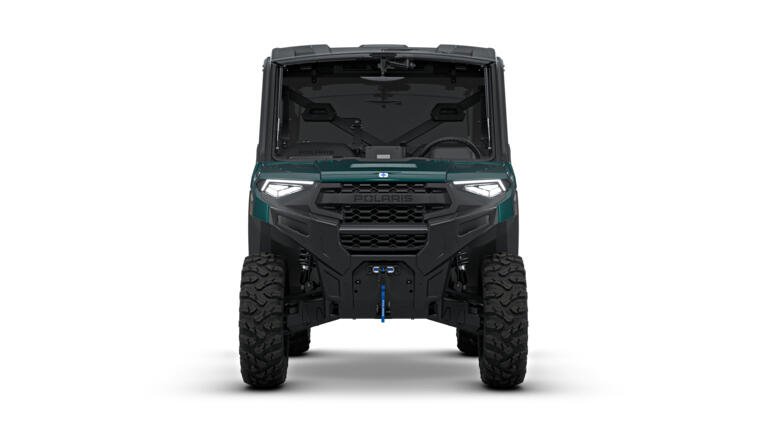

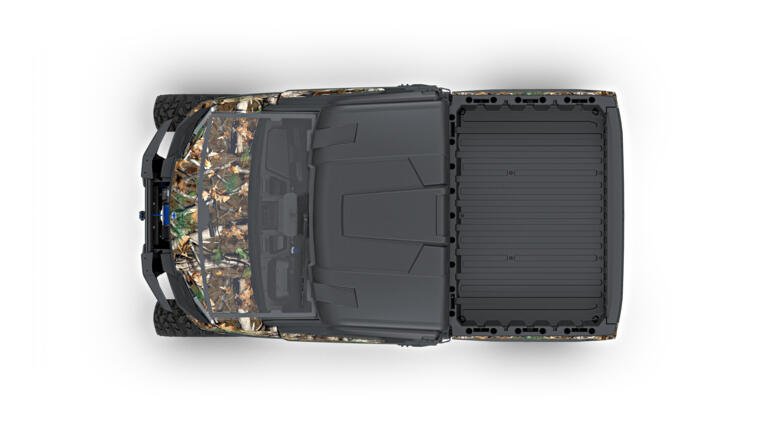

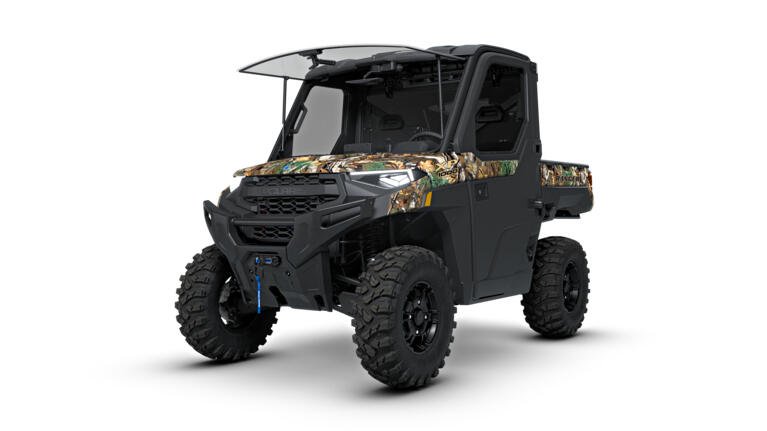

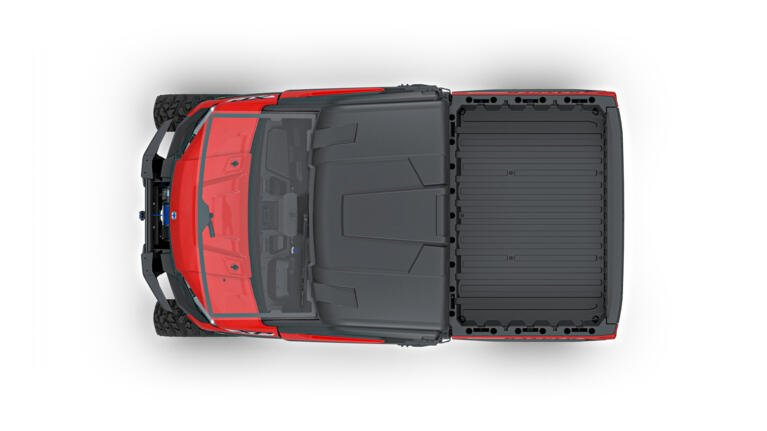

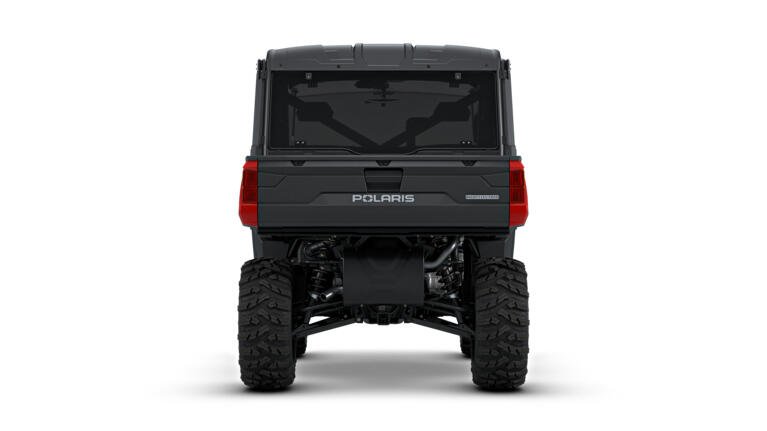

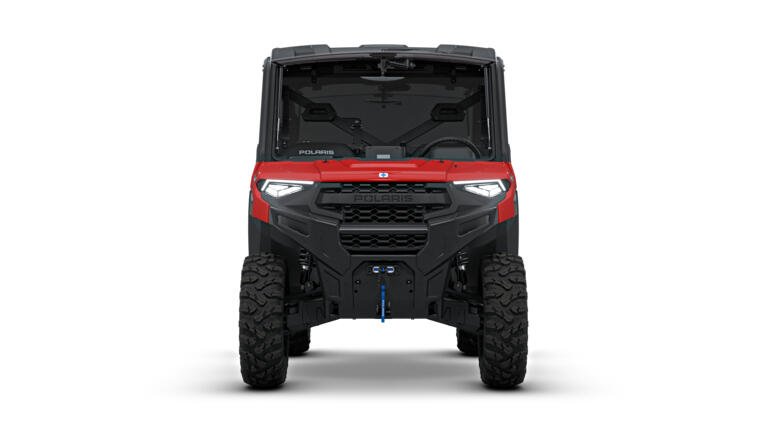

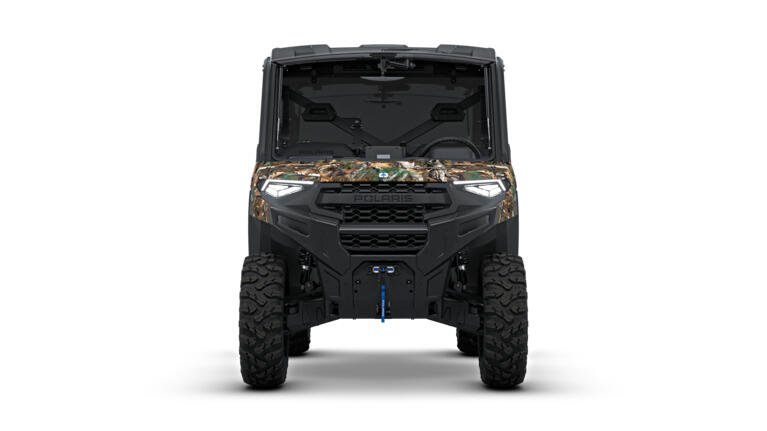

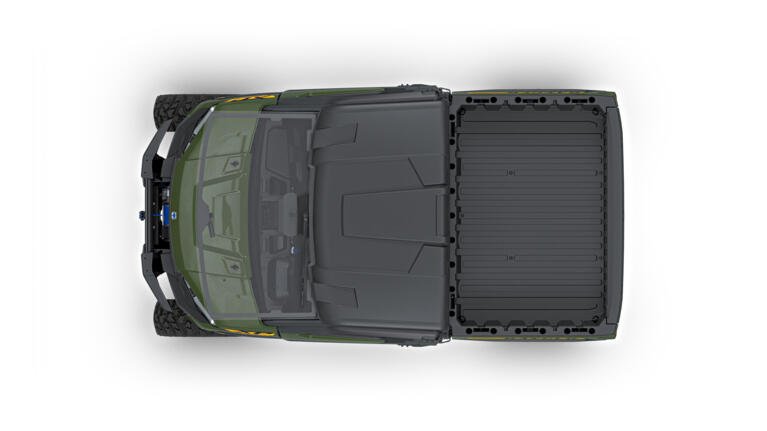

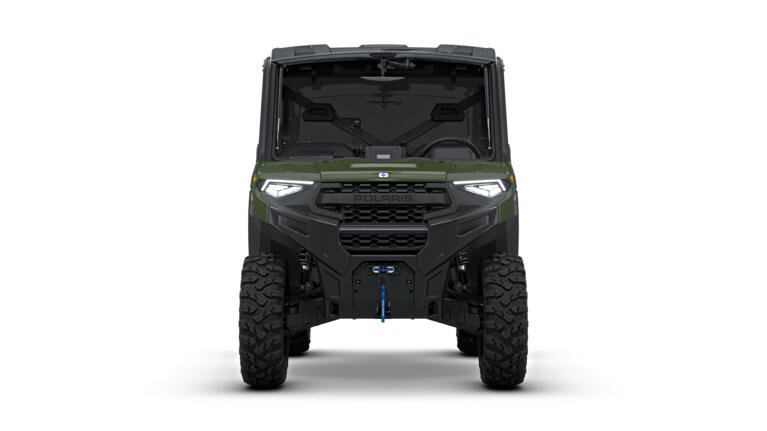

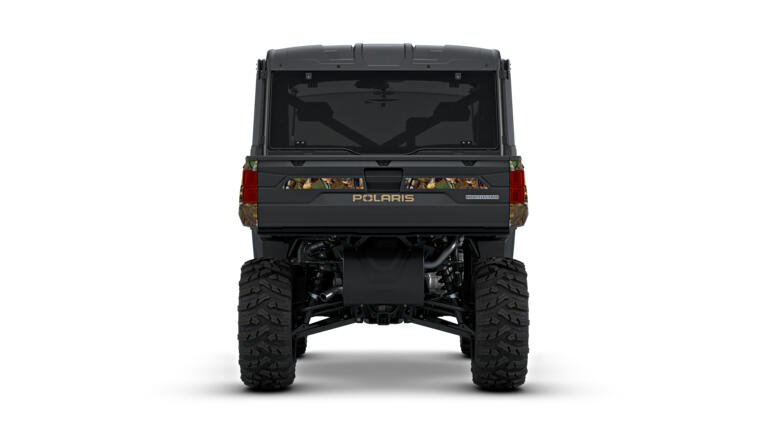

2027 Polaris Ranger XP 1000 NorthStar Ultimate

Side by Side (SxS)

Ranger XP 1000 NorthStar Ultimate

Built with the same proven capability as RANGER XP 1000, NorthStar elevates the experience with an enclosed cab and premium features that deliver enhanced comfort and greater confidence year‑round.

Starting at $33,799 MSRP
Manufacturer suggested retail price. Does not include dealer fees, tax, title, or registration.

Specs & Features

ENGINE & DRIVETRAIN
Cooling
Liquid
Cylinders Displacement
999 cc
Drive System Type
Selectable on-demand all-wheel drive, AWD/2WD/VersaTrac Turf Mode
Driveline Features
N/A
Engine Type
4-stroke twin cylinder DOHC
Fuel System
Electronic fuel injection
Horsepower
82
Transmission/Final Drive
Gen 2 Automatic PVT H/L/N/R/P; shaft
DIMENSIONS
Bed Box Dimensions
36.75 x 54.25 x 12.5" (93 x 138 x 32 cm)
Box Capacity
1,000 lbs. (454 kg) CA Models: 600 lbs. (272 kg)
Estimated Dry Weight
1,759 lbs. (798 kg)
Accessory Weight
284 lbs. (129 kg)
Fuel Capacity
11.5 gal (43.5 L)
Ground Clearance
14" (36 cm)
Towing Capacity
2,500 lbs. (1134 kg)
Hitch Type
Standard 2" (5 cm) receiver
Overall Vehicle Size (L x W x H)
120 x 65 x 79.5" (305 x 165 x 201 cm)
Payload Capacity
1,275 lbs. (578 kg) CA Models: ,1100 lbs. (499 kg)
Person Capacity
3
Turning Radius
13' (4 m)
Wheelbase
81" (206 cm)
SUSPENSION
Front Suspension
Dual A-arm, 10" (25.4 cm) travel
Rear Suspension
Dual A-arm, 10" (25.4 cm) travel
TIRES / WHEELS
Front Tires
29 x 9-14; Pro Armor X Terrain
Rear Tires
29 x 11-14; Pro Armor X Terrain
Tire Ply Rating
8-ply
Wheels
14" aluminum
Brakes
Front/Rear Brakes
4-wheel hydraulic disc with dual-bore front and rear calipers
Parking Brake
Park in-transmission
Technology
Audio System
JBL Trail Pro 2000 audio
Connected Vehicle Services
Not equipped, accessory options available
Touch Screen Display
7" Display powered by RIDE COMMAND, featuring built‑in GPS navigation with topographic mapping, Group Ride (cell‑based or GPS‑based) with messaging, ride tracking, configurable gauges, waypoints, help alerts, Bluetooth® audio, AM/FM radio, and USB smartphone connectivity. Includes Plow-Mode when properly equipped.
Rear Camera
Factory rear camera
Security
Polaris P.A.S.S. anti-theft system
COMFORT & CONVENIENCE
Driver Instrumentation
Dual-sweep analog dials with 4" LCD rider information center: user selectable blue/red backlighting and brightness, passcode protection, programmable service intervals, speedometer, programmable speed limiting, tachometer, odometer, tripmeter, clock, hour meter, gear indicator, fuel gauge, coolant temperature, voltmeter, service indicator and codes, seat belt reminder
Seat Type
3-person bolstered bench seats with 3-point harness and adjustable driver seat
Steering
Tilt adjustment
Electronic Power Steering
High-output EPS
Cab Components
Factory-installed cab system with roof and sound insulation materials, tip-out glass windshield, tinted side windows and rear panel, powered front windows, rearview mirror, windshield wiper/washer, dome light
Heat and/or Air Conditioning
Factory-installed heat, AC, defrost
Speed Limiting
Speed Limiting controlled in RIDE COMMAND
LIGHTING & ELECTRICAL
Lighting
Dual LED headlights, 1,250-lm low beam, 2,300-lm high beam, dual LED taillights
Electrical System
140-amp charging system, Polaris Pulse electrical system (6-position hood and 6-position roof), USB charger, 12V accessory outlet, battery trickle-charging port
EXTERIOR FEATURES
Winch
4,500 LB Winch with synthetic rope, Auto Stop and wireless remote
Vehicle Protection
Large steel bumper, full-coverage skid plate, CV Shields
Door Type
Powered window doors
Cargo System
Gas-assist dump box with Lock & Ride accessory integration
ADDITIONAL SPECIFICATIONS
Warranty
2-year limited warranty*
PROTECTION FROM THE ELEMENTS
Weatherproof your plans with an enclosed cab featuring powered windows and a tip-out windshield. Stay comfortable year-round with factory-installed heat and AC.
RIDE COMMAND
The 7” Display, powered by RIDE COMMAND, delivers built‑in GPS navigation with access to over 1.3 million miles of trail maps, Group Ride and other unique features—even without cell service—so you can ride with confidence and tackle jobs with ease.
IMMERSIVE SOUND SYSTEM
Elevate your day with integrated JBL Trail Pro 2000 Audio. It delivers precise audio clarity and premium sound. Enjoy AM/FM radio or connect to Bluetooth® via the 7" Display, powered by RIDE COMMAND.
EFFORTLESS SHIFTING
Gen 2 transmission reduces shift effort by up to 50%, so you can move between drive, park and reverse with less effort and more control.
