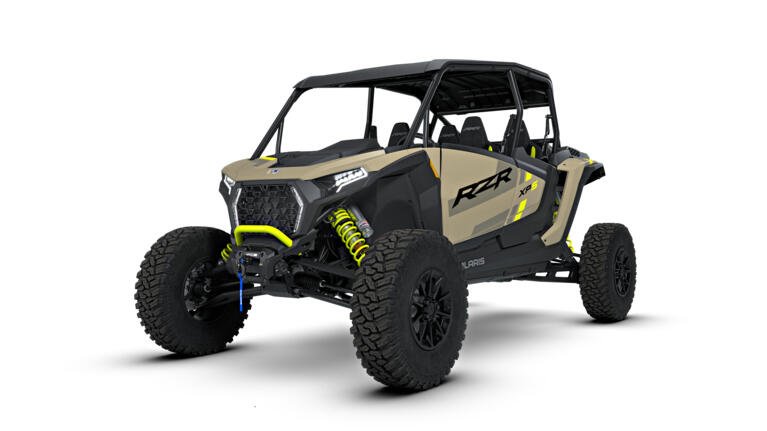

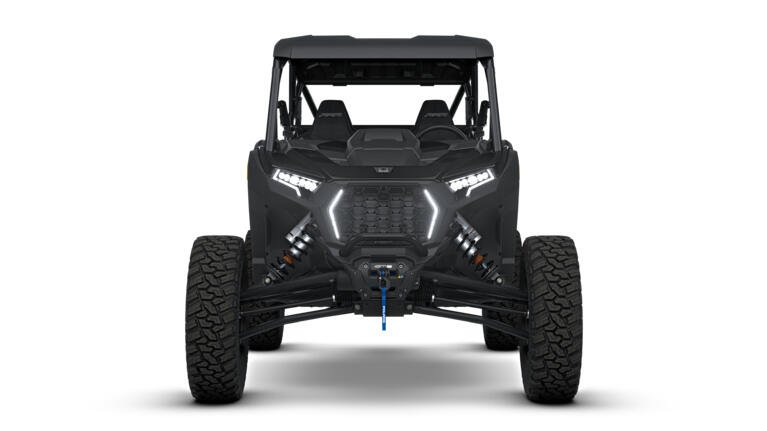

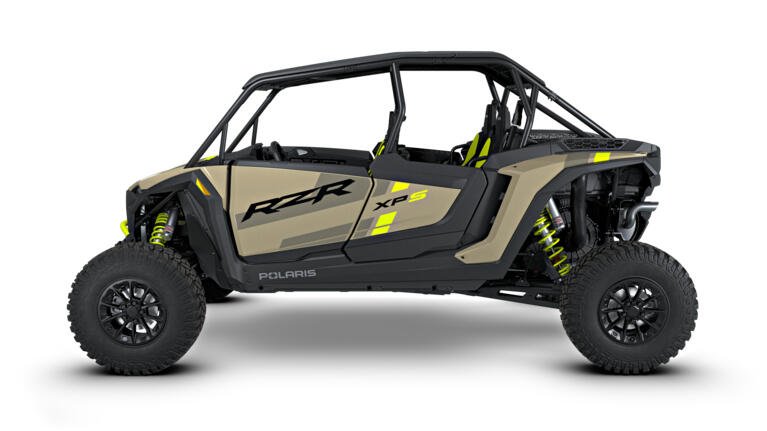

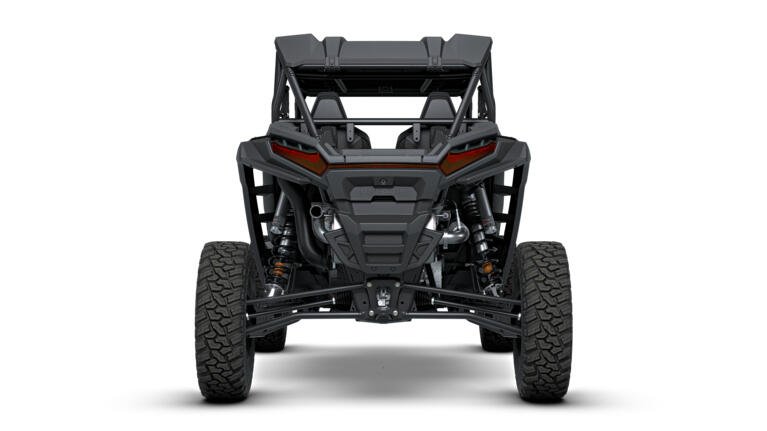

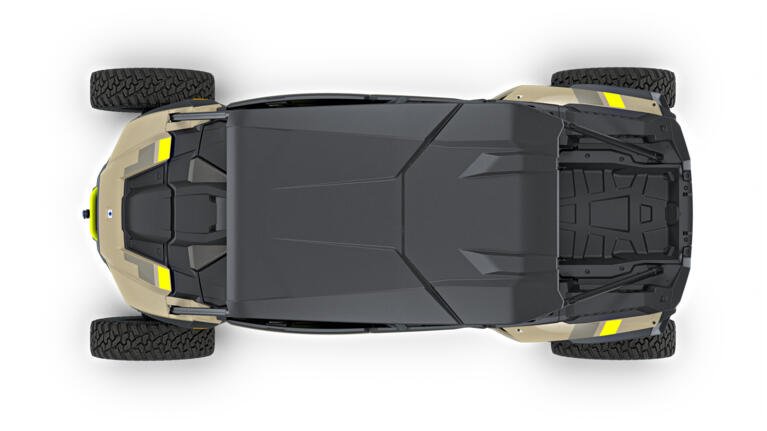

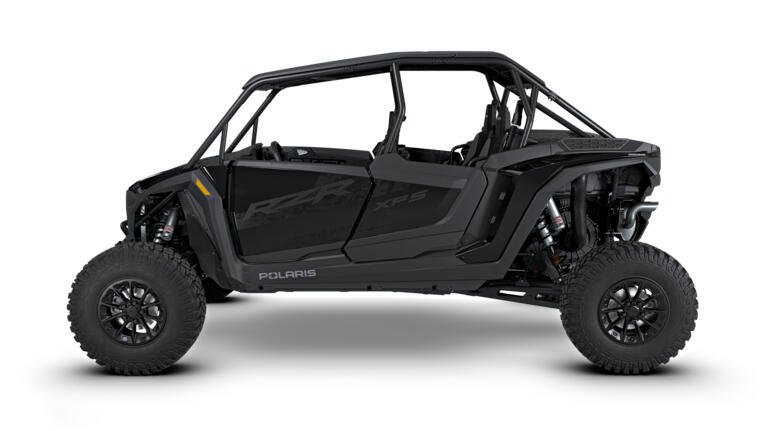

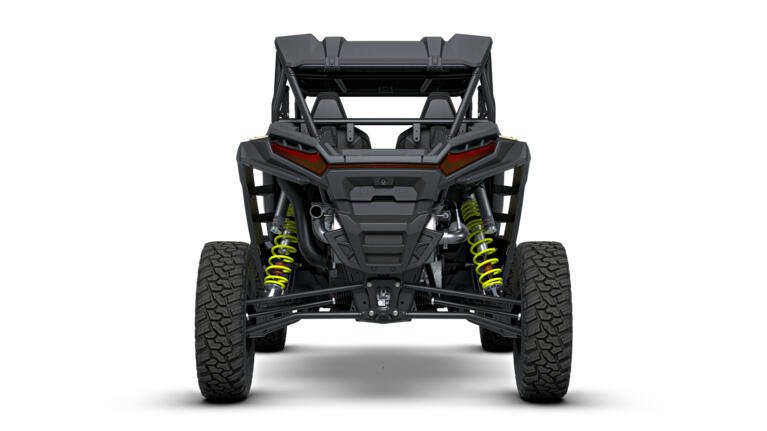

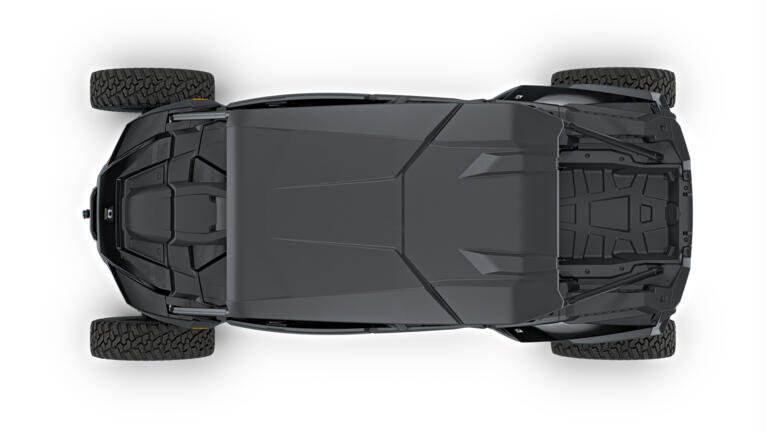

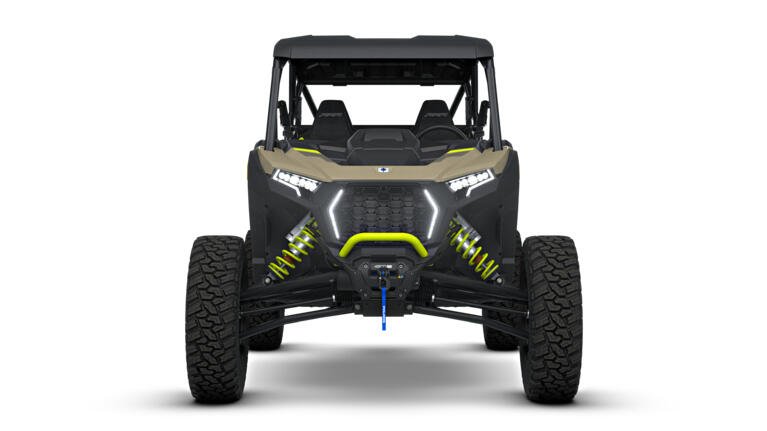

2027 Polaris RZR XP S 4 Ultimate

Side by Side (SxS)

RZR XP S 4 Ultimate

Take on brutal rock crawls and grueling trails with a machine designed for uncompromising performance.

Starting at $29,499 MSRP
Manufacturer suggested retail price. Does not include dealer fees, tax, title, or registration.

Specs & Features

Engine & Drivetrain
Cooling
Liquid
Cylinders Displacement
999 cc
Drive System Type
High-performance true on-demand AWD/2WD
Driveline Features
Not equipped
Engine Type
ProStar 1000 4-stroke DOHC twin cylinder
Fuel System/Battery
Electronic fuel injection
Horsepower
114
Transmission/Final Drive
Automatic PVT P/R/N/L/H with geared reverse
Dimensions
Bed Box Dimensions (L x W x H)
28 x 22 x 7 in (72.0 x 57.0 x 17.8 cm)
Box Capacity
300 lbs. (136 kg)
Curb Weight
"2,112 lbs. (958kg) CA 2119 lbs. (961 kg)"
Estimated Dry Weight
"2,022lbs (917 kg) CA 2029 (920 kg)"
Fuel Capacity
9.5 gal. (36 L)
Ground Clearance
16" (40.6 cm)
Towing Capacity
N/A
Hitch Type
N/A
Overall Vehicle Size (L x W x H)
149.8 x 72 x 76.5"
Payload Capacity
900 lbs. (408 kg)
Person Capacity
4
Turning Radius
24.5'
Wheelbase
117" (297.2 cm)
Suspension
Electronic Suspension Control System
Not equipped
Front Shocks
2.5" Walker Evans® velocity shocks with 16-position adjustable clickers
Front Suspension
Dual A-arm with stabilizer bar and 25" (63.5 cm) usable travel*, 19" (48.3 cm) of wheel travel
Rear Shocks
2.5" Walker Evans® velocity shocks with 16-position adjustable clickers
Rear Suspension
Trailing arm with stabilizer bar and 25" (63.5 cm) usable travel*, 21" (53.3 cm) of wheel travel
Tires / Wheels
Front Tires
Pro Armor Trekker; 2.0 32 x 10-15 radial tire
Rear Tires
Pro Armor Trekker; 2.0 32 x 10-15 radial tire
Tire Ply Rating
8-ply
Wheels
15" cast-aluminum rim with 5-lug pattern
Brakes
Front/Rear Brakes
4-Wheel Hydraulic Disc with Dual-Bore Front and Rear Calipers
Parking Brake
Park in-transmission
Technology
Audio System
Rockford Fosgate® Stage 3 audio (including 2 front & 2 rear co-axial speakers and external 400-W amp)
Connected Vehicle Services
Not equipped, accessory options available
Touch Screen Display
7" Display powered by RIDE COMMAND, featuring built‑in GPS navigation with topographic mapping, Group Ride (cell‑based or GPS‑based) with messaging, ride tracking, configurable gauges, waypoints, help alerts, AM/FM & weather radio, Bluetooth® audio & USB smartphone connectivity, and in‑vehicle communications capability with optional Bluetooth® headsets.
Camera
Equipped
Security
Polaris P.A.S.S anti-theft system
Comfort & Convience
Driver Instrumentation
"Displayed on center 7"" display Programmable speed limiting"
Seat Type
Bolstered bucket seats with driver & passenger seat slider, retractable 3-point seat belts, 2nd-row stadium-raised seating
Steering
Standard tilt
Electronic Power Steering
Standard with quick turn rack
Drive Modes
Rock, Standard, Sport
Cab Components
Half doors, Poly roof
Heat and/or Air Conditioning
Not equipped
Speed Limiting
Programmable speed limiting
Ride Control
Not equipped
LIGHTING AND ELECTRICAL
Lighting
Signature RZR Fang Accent Lighting, LED headlights & taillights, illuminated in-cab controls
Electrical System
900-W Charging System @ 3,000 RPM, 6-Position PULSE Bar
EXTERIOR FEATURES
Winch
"Integrated 4,500-lb. winch "
Vehicle Protection
Front bumper
Door Type
Half doors
Cargo System
Lock & Ride
WARRANTY
12-MONTHS
Disclaimer
" *Usable travel is measured, with the vehicle in full droop, from the bottom of the tire to the bottom of the skid plate. *Group Ride only available in North America "
DESIGNED TO DOMINATE
Featuring a bold, aggressive look and the muscle to match, RZR XP S is built to turn heads and command challenging terrain. With a 72" stance and 32" Pro Armor Trekker tires standard the RZR XP S is designed to take on rough terrain.
FEARLESSLY RIDE FARTHER
Armed with Turbo S-inspired, high-strength suspension, RZR XP S dominates with a segment-leading 25” of usable travel and 16" of ground clearance— delivering relentless durability and performance to command brutal terrain.
CRAWL LIKE A CHAMP
Take on technical rock climbs and trail runs with unwavering confidence, powered by a durable driveline. With a tough front drive and shafts as well as a RZR Pro S inspired transmission, it's designed for extreme durability.
TRAIL-OPTIMIZED TECHNOLOGY
Take your ride up a notch with trail-ready technology. From advanced connectivity to groundbreaking sound, RZR XP S features cutting-edge tech to unlock more potential off road.
