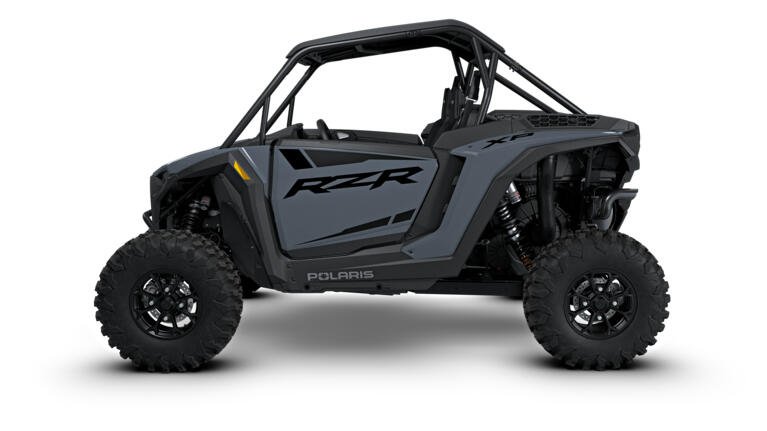

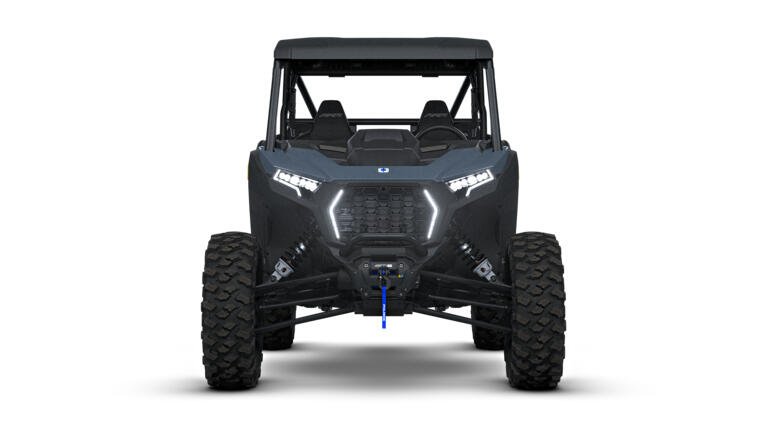

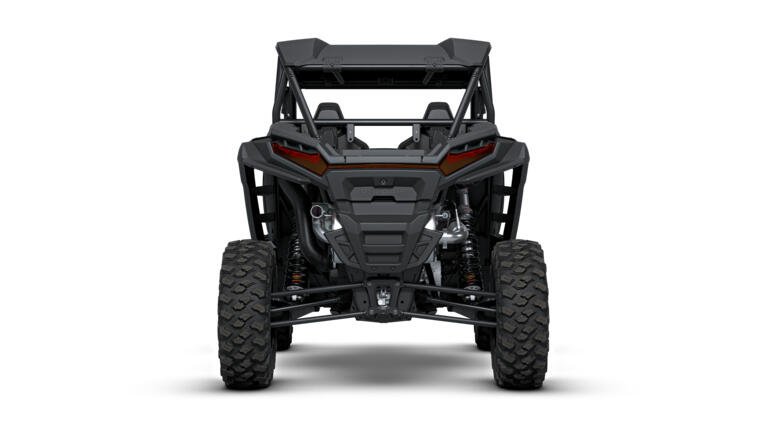

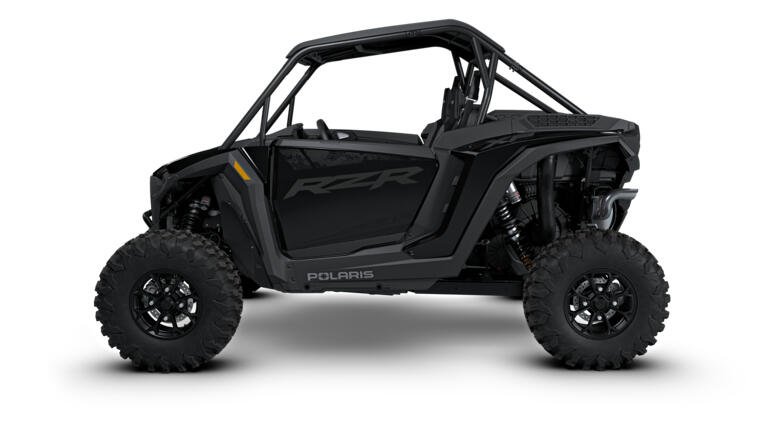

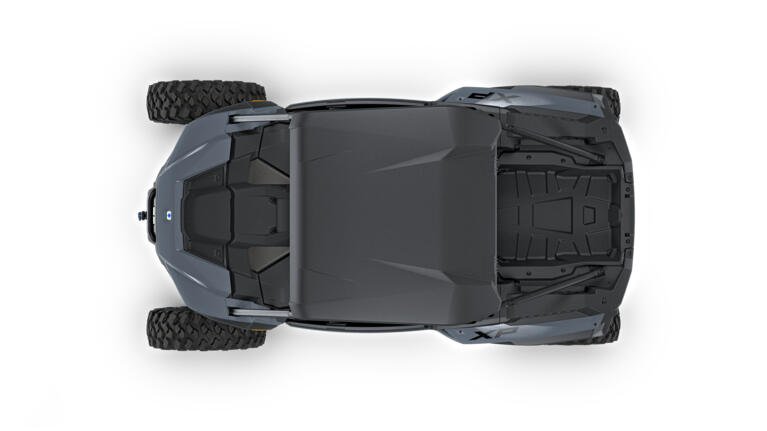

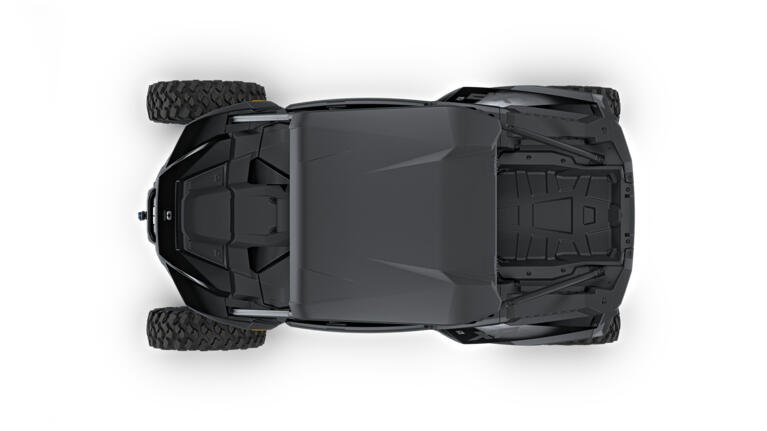

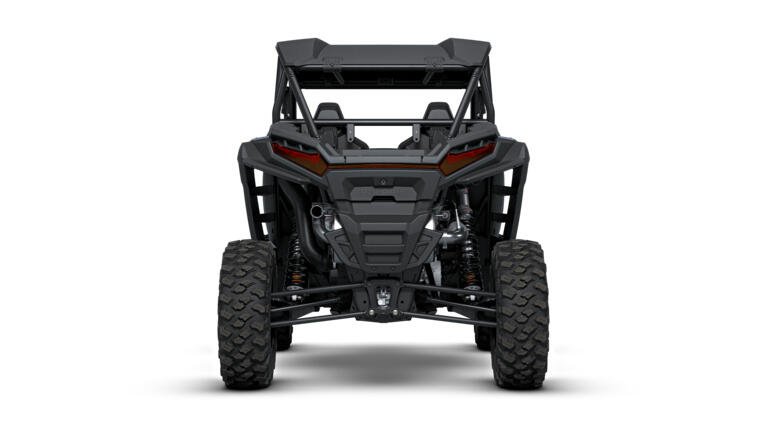

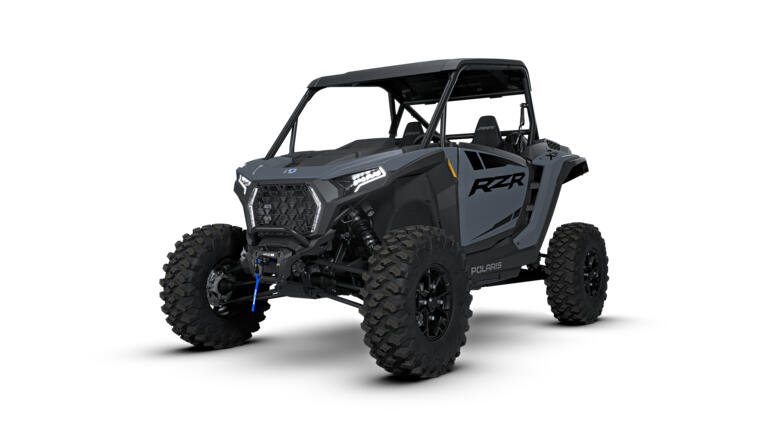

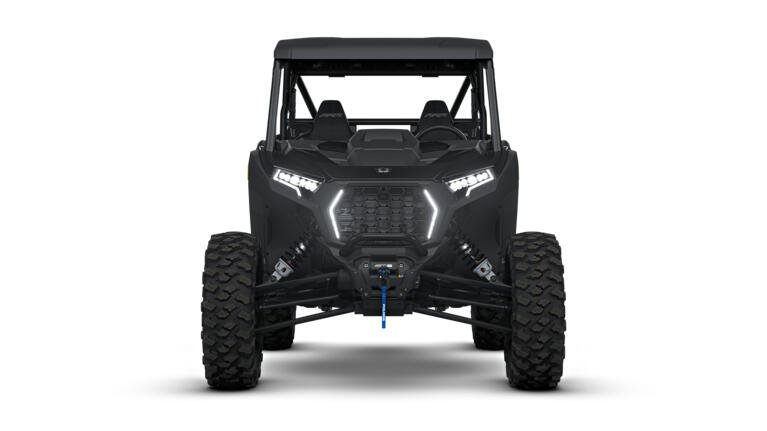

2027 Polaris RZR XP Ultimate

Side by Side (SxS)

RZR XP Ultimate

Experience pioneering performance. Fueled by 11 years of rider input, the reimagined RZR XP unlocks a new era of performance, agility and style—a legend, evolved.

Starting at $23,999 MSRP
Manufacturer suggested retail price. Does not include dealer fees, tax, title, or registration.

Specs & Features

Engine & Drivetrain
Cooling
Liquid
Cylinders Displacement
999 cc
Drive System Type
High-performance true on-demand AWD/2WD
Driveline Features
Not equipped
Engine Type
ProStar 1000 4-stroke DOHC twin cylinder
Fuel System/Battery
Electronic fuel injection
Horsepower
114
Transmission/Final Drive
Automatic PVT P/R/N/L/H with geared reverse
Dimensions
Bed Box Dimensions (L x W x H)
28 x 22 x 7" (72.0 x 57.0 x 17.8 cm)
Box Capacity
300 lbs. (136 kg)
Curb Weight
1,753 lbs. (795kg) CA 1760 lbs. (798 kg)
Estimated Dry Weight
1,665lbs (755 kg) CA 1672 (758 kg)
Fuel Capacity
9.5 gal. (36 L)
Ground Clearance
14.5" (36.8 cm)
Towing Capacity
N/A
Hitch Type
N/A
Overall Vehicle Size (L x W x H)
120 x 64 x 74" (304.8 x 162.6 x 188 cm)
Payload Capacity
740 lbs. (336 kg)
Person Capacity
2
Turning Radius
16.2'
Wheelbase
90" ( 228.6 cm)
Suspension
Electronic Suspension Control System
Not equipped
Front Shocks
2" Walker Evans® needle shocks with 16-position adjustable clickers
Front Suspension
Dual A-arm with stabilizer bar and 20.5" (52.07 cm) usable travel*, 16" (40.6 cm) of wheel travel
Rear Shocks
2.5" Walker Evans® needle shocks with 16-position adjustable clickers
Rear Suspension
Trailing arm with stabilizer bar and 20.5" (52.07 cm) usable travel*, 18" (45.7 cm) of wheel travel
Tires / Wheels
Front Tires
30 x 10-14 radial tire
Rear Tires
30 x 10-14 radial tire
Tire Ply Rating
8-ply
Wheels
14" cast aluminum
Brakes
Front/Rear Brakes
4-wheel hydraulic disc with dual-bore front and single-bore rear calipers
Parking Brake
Park in-transmission
Technology
Audio System
Rockford Fosgate® Stage 3 audio (including 2 front & 2 rear co-axial speakers and external 400-W amp)
Connected Vehicle Services
Not equipped, accessory options available
Touch Screen Display
7" Display powered by RIDE COMMAND, featuring built‑in GPS navigation with topographic mapping, Group Ride (cell‑based or GPS‑based) with messaging, ride tracking, configurable gauges, waypoints, help alerts, AM/FM & weather radio, Bluetooth® audio & USB smartphone connectivity, and in‑vehicle communications capability with optional Bluetooth® headsets.
Camera
Equipped
Security
Polaris P.A.S.S anti-theft system
Comfort & Convience
Driver Instrumentation
"Displayed on center 7"" display Programmable speed limiting"
Seat Type
Bolstered bucket seats with driver seat slider, retractable 3-point seat belts
Steering
Standard tilt
Electronic Power Steering
Standard with quick turn rack
Drive Modes
Not equipped
Cab Components
Half doors, Poly roof
Heat and/or Air Conditioning
Not equipped
Speed Limiting
Programmable speed limiting
Ride Control
Not equipped
LIGHTING AND ELECTRICAL
Lighting
Signature RZR Fang Accent Lighting, LED headlights & taillights, illuminated in-cab controls
Electrical System
900-W Charging System @ 3,000 RPM, 6-Position PULSE Bar
EXTERIOR FEATURES
Winch
"Integrated 4,500-lb. winch "
Vehicle Protection
Front bumper
Door Type
Half doors
Cargo System
Lock & Ride
WARRANTY
12-MONTHS
Disclaimer
" *Usable travel is measured, with the vehicle in full droop, from the bottom of the tire to the bottom of the skid plate. *Group Ride only available in North America "
COMMAND RESPECT
Be as bold as you look with an elevated exterior featuring an aggressive stance, muscular profile and commanding style. Not just for show—this design delivers more strength and performance to take on grueling terrain.
POWER YOUR THRILL
The segment leading 114-hp ProStar 1000 Gen-2 engine delivers instant power and confident throttle response as you carve through winding trails.
UNLEASH STRONGER PERFORMANCE
Dominate the dirt with a shared chassis between RZR XP and RZR XP S. It's reinforced with robust suspension hardware that can be seen, supporting the perfect blend of durability, power, and razor-sharp agility, reducing noise with a tighter fit finish to optimize your off-road experience.
TRAIL-OPTIMIZED TECHNOLOGY
Take your ride up a notch with trail-ready technology. From advanced connectivity to groundbreaking sound, RZR XP features cutting-edge tech to unlock more potential off road.
