Overview

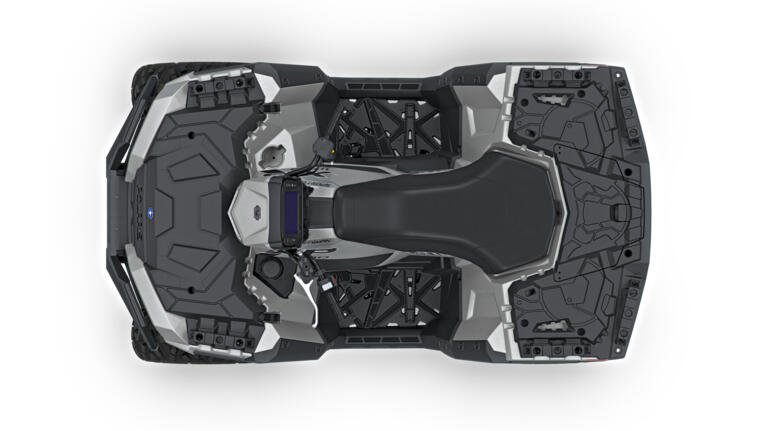

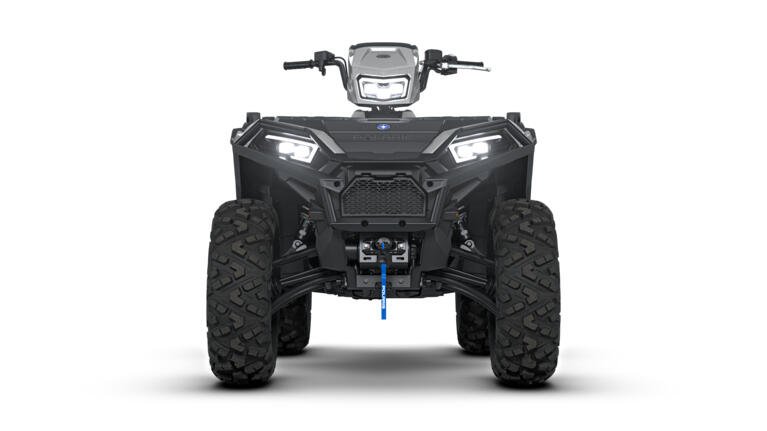

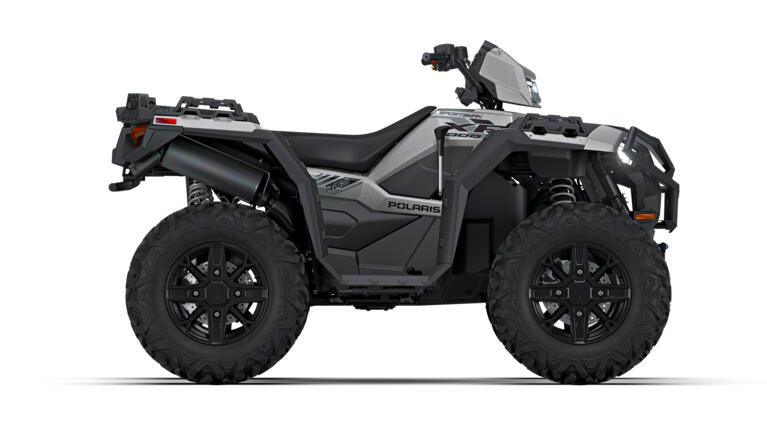

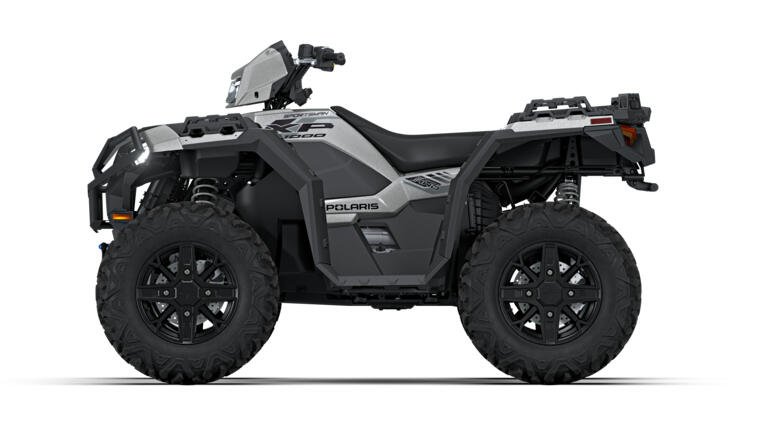

2027 Polaris Sportsman XP 1000 Ultimate

All Terrain Vehicle (ATV)

Sportsman XP 1000 Ultimate

Ultimate delivers unrelenting power with legendary ride and handling to take on the trails ahead.

Starting at $15,999 MSRP
Manufacturer suggested retail price. Does not include dealer fees, tax, title, or registration.

Specs & Features

ENGINE & DRIVETRAIN
Cylinders Displacement
952 cc
Cooling
Liquid
Drive System Type
One-touch on-demand AWD/2WD
Driveline Features
Includes: engine braking system (EBS), Active Descent Control (ADC)
Engine Type
Prostar 4-stroke SOHC twin cylinder
Fuel System/ Battery
Electronic fuel injection / 400 CCA
Horsepower
90
Transmission/Final Drive
Automatic PVT P/R/N/L/H inline shifting
DIMENSIONS
Bed Box Dimensions
N/A
Front/Rear Rack Capacity
120 lbs. (55 kg) / 240 lbs. (110 kg)
Curb Weight
950 lbs. (431 kg)
Estimated Dry Weight
904 lbs. (410 kg)
Fuel Capacity
5.25 gal (19.9 L)
Ground Clearance
12" (30.5 cm)
Towing Capacity
1,500 lbs. (680 kg)
Hitch Type
Standard 1.25" (3.2 cm) receiver
Overall Vehicle Size (L x W x H)
83.25" x 47.6" x 50.75" (211.4 x 120.9 x 128.9 cm)
Payload Capacity
575 lbs. (261 kg)
Person Capacity
1
Seat Height
37" (94 cm)
Wheelbase
53" (134.6 cm)
SUSPENSION
Front Shocks
N/A
Front Suspension
Sealed high-clearance arched dual A-arm 9" (22.9 cm) travel
Rear Shocks
N/A
Rear Suspension
Sealed, high-clearance, arched dual A-arm, rolled IRS, 10.25" (26 cm) travel
TIRES / WHEELS
Front Tires
27 x 9-14; Duro
Rear Tires
27 x 11-14; Duro
Wheels
14" (35.6 cm) aluminum
BRAKES
Front/Rear Brakes
Single lever, 4-wheel hydraulic disc with hydraulic rear foot brake
Parking Brake
Park in-transmission / lockable hand lever
TECHNOLOGY
Connected Vehicle Services
RIDE COMMAND+ connected vehicle services including real‑time vehicle location, vehicle security alerts, remote ignition lockout, vehicle health diagnostics, and maintenance reminders. Free three-year subscription of RIDE COMMAND+ included with purchase of a factory installed vehicle.
Touch Screen Display
7" Display powered by RIDE COMMAND, featuring built‑in GPS navigation with topographic mapping, Group Ride (cell‑based or GPS‑based) with messaging, ride tracking, configurable gauges, waypoints, help alerts, and USB smartphone connectivity. Includes Plow-Mode when properly equipped.
COMFORT AND CONVENIENCE
Driver Instrumentation
All-digital gauge: speedometer, odometer, tachometer, two tripmeters, hour meter, gear indicator, fuel gauge, AWD indicator, volt meter, coolant temperature, hi-temp light, text and call notifications
Seat Type
Premium cut and sew saddle seat
Electronic Power Steering
Multi-select EPS
Speed Limiting
Not equipped
Ride Control
Not equipped
Polaris P.A.S.S Anti-Theft System
Equipped
LIGHTING AND ELECTRICAL
Lighting
High-output LED pod, high-output LED bumper lights, dual LED brake lights/taillights
Electrical System
In-pod battery charge port, in-pod USB charger, PIN-activated security system (P.A.S.S.), 12-volt power plug, in-pod trickle charging port
EXTERIOR FEATURES
Winch
3,500 LB Winch with synthetic rope and Auto Stop
Vehicle Protection
Front Ultimate Series bumper, painted plastics, painted springs, fender flares
Cargo System
Lock & Ride, 4 gal (15 L) front dry storage, 2 gal (8 L) rear storage, 6 movable tie-down points
ADDITIONAL SPECIFICATIONS
Warranty
1-year limited warranty
A SMOOTHER RIDE
High-clearance arched dual A-arms and 10.25" of independent rear suspension soak up bumps—giving you a smoother, more comfortable ride when the trail gets rough.
PULL AND TOW MORE
1,500‑lb. towing capacity and our 3,500 LB Winch deliver the strength to haul heavy loads and pull with control—so you're ready when the job gets demanding.
NAVIGATE CONFIDENTLY
The 7” Display, powered by RIDE COMMAND, delivers built‑in GPS navigation with access to over 1.3 million miles of trail maps, Group Ride and other unique features—even without cell service—so you can ride with confidence and tackle jobs with ease.
STAY INFORMED. STAY CONFIDENT
RIDE COMMAND+ delivers upgraded connected insights including vehicle health, maintenance status, and vehicle security alerts through the Polaris App, so you can ride—and walk away—with peace of mind.
